Michi S5

Verstärker

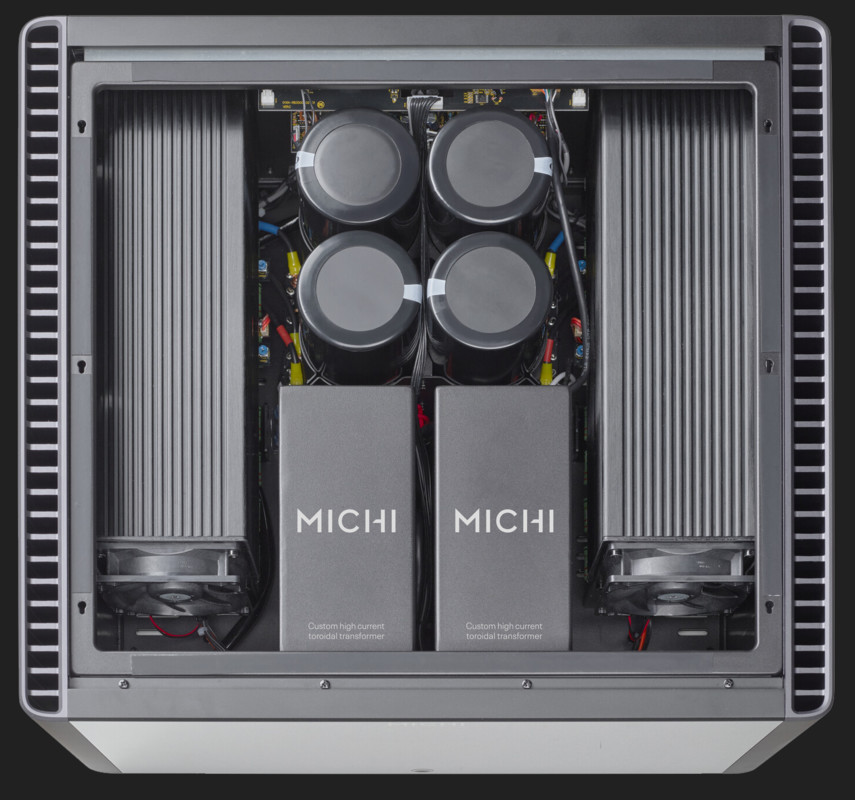

The Rotel Michi S5 stereo power amplifier delivers 500 watts per channel into 8 ohms, pairing commanding Class AB amplification with meticulously considered engineering. Its dual-monoblock architecture features two identical, oversized toroidal transformers, each housed in an individual epoxy-filled enclosure to eliminate noise and vibration. Four British-made capacitors, with a combined capacity of 188,000 µF, provide exceptional bass energy while preserving precise detail and control. Working with 32 high-current transistors, this substantial energy reserve ensures effortless timing and rhythmic precision, even under the most demanding load conditions. Balanced XLR inputs complete the design. The S5 embodies a commitment to sonic performance that extends from the initial concept to the finished amplifier. Countless hours of design work, critical component evaluation and sonic tuning underpin its carefully refined performance.

5.960 €

Vorschau-Kollektion · Verfügbarkeit auf Anfrage

Power AmpSolid StateClass ABStereoBalanced XLR

DETAILS, DIE DEN UNTERSCHIED MACHEN

Technische Daten

Rotel · Michi S5

Technische Daten für Michi S5
GainUnbalanced RCA: 28 dB; balanced XLR: 24 dB
Gewicht59.9 kg
Impedanz4 Ω minimum speaker impedance
Ausgangsleistung500 W per channel into 8 Ω; 800 W per channel into 4 Ω (RMS)
Damping Factor350
Amplifier ClassClass AB
Input ImpedanceUnbalanced RCA: 12.5 kΩ; balanced XLR: 100 kΩ
Input SensitivityUnbalanced RCA: 2.6 V; balanced XLR: 4.2 V
Channel Separation>65 dB
Frequenzgang20 Hz–20 kHz (+0 dB, −0.15 dB); 10 Hz–100 kHz (+0 dB, −0.4 dB)
Signal-to-Noise Ratio120 dB
Dimensions (W × H × D)485 × 238 × 465 mm
Total Harmonic Distortion<0.008%
Intermodulation Distortion<0.03% (60 Hz:7 kHz, 4:1)
Leistung / Verstärkeranforderungen500 W per channel into 8 Ω; 800 W per channel into 4 Ω (RMS) · integrierte Verstärkung
ZustandNeuware · Originalverpackt
GarantiebedingungenVolle Herstellergarantie · Dauer auf Anfrage
